Place of Origin ShanDong
Brand Name MRT
Certification CE
Model Number MRT-TR
Minimum Order Quantity 1 set
Price US $3,000 - 20,000 / Set
Packaging Details Plywood Wooden Case / Export Standard Packaging
Delivery Time 15-30 work days after deposit received
Payment Terms L/C, D/A, T/T
Supply Ability 50 Sets / per Month
Product Details
Application Material Handling, Welding, Assembly, Packaging Powersupply AC 220V/380V, 50/60 Hz
Loadcapacity Up To 3000 Kg Drivetype Servo Motor/Stepper Motor
Structure Gantry Truss Repeatability ±0.05 Mm
Spanlength Customizable, Typically 3-20 Meters Productname Gantry Truss Manipulator
Material High-strength Steel/Aluminum Alloy Controlsystem PLC/Industrial PC Based Control
Degreesoffreedom 3 To 6 Axes Operatingspeed Up To 2 M/s
Installationtype Floor-mounted Or Ceiling-mounted Type Robotic Manipulator
Certification CE, ISO9001 Control System PLC Intelligent Control
You can tick the products you need and communicate with us in the message board.
SKU Code Model Axis (mm)X Axis Stroke (mm)Y Axis Stroke (mm)Z Axis Stroke (kg)Rated Payload (mm)Repeat Accuracy (m/min)Max Speed Mounting Type Control System End Effector Power Supply (kg)Weight MOQ Lead Time (USD)Reference Price
MRT-GT-3A-050-3020 GT-3A-050 3 Axis 3000 2000 500 50 ±0.05 60 Floor Mounted PLC+Servo Pneumatic Gripper 380V 50/60Hz 3Phase 850 1 Set 25-30 8,500-22,000
MRT-GT-3A-100-4030 GT-3A-100 3 Axis 4000 3000 800 100 ±0.05 50 Floor Mounted PLC+Servo Gripper/Vacuum 380V 50/60Hz 3Phase 1,200 1 Set 30-35 12,000-28,000
MRT-GT-3A-200-5030 GT-3A-200 3 Axis 5000 3000 1000 200 ±0.08 40 Gantry Mounted PLC+Servo Electric/Custom 380V 50/60Hz 3Phase 1,850 1 Set 35-40 18,000-36,000
MRT-GT-3A-300-6040 GT-3A-300 3 Axis 6000 4000 1200 300 ±0.08 35 Gantry Mounted PLC+Servo Electric/Hydraulic 380V 50/60Hz 3Phase 2,600 1 Set 40-45 26,000-48,000
MRT-GT-3A-500-8050 GT-3A-500 3 Axis 8000 5000 1500 500 ±0.10 30 Heavy Gantry PLC +Servo Hydraulic/Custom 380V 50/60Hz 3Phase 4,200 1 Set 45-55 38,000-85,000
MRT-GT-3A-CUSTOM GT-3A-CUSTOM 3 Axis / Customizable Custom Custom Custom 50-1000 Custom ±0.05~±0.15 20-60 Custom Custom PLC/CNC/ All Types Custom Custom 1 Set By Plan By Plan
Leave a Message
SKU Code Model Axis (mm)X Axis Stroke (mm)Y Axis Stroke (mm)Z Axis Stroke (kg)Rated Payload (mm)Repeat Accuracy (m/min)Max Speed Mounting Type Control System End Effector Power Supply (kg)Weight MOQ Lead Time (USD)Reference Price
Product Description

> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`

> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`

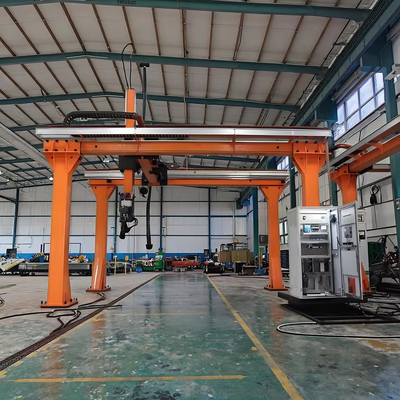

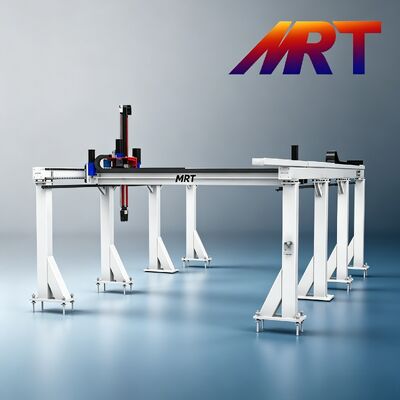

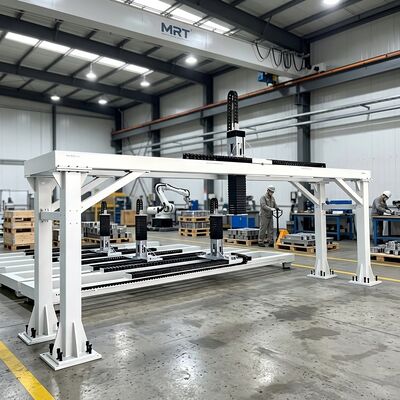

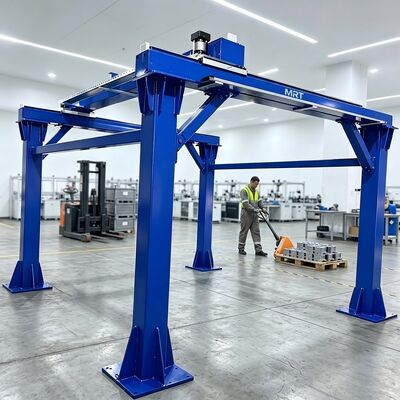

The truss-type mechanical arm (gantry robot) independently developed by Mairuite is a highly precise automatic industrial handling device. It adopts high-strength steel beam integral welding structure with strong rigidity and stable operation. Equipped with full servo drive and PLC intelligent control system, it realizes high-speed, high-precision and long-stroke automatic operation. Support multiple fixture forms and multi-axis combination, adaptable to various complex workshop production processes, with strong stability and long service life.

> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`

Product Functions

Mainly realizes automatic loading, unloading, handling, transferring, sorting and stacking of workpieces. It replaces manual repetitive operation, supports single-station and multi-station cross-line cyclic work, realizes fully automatic production line docking, and effectively improves workshop automation level and production efficiency.

Core Advantages

1. Full-scene Non-standard Customization
Support full custom solution including load, stroke, speed, axis quantity, fixture type and control mode. Professional engineering team designs exclusive automation scheme according to customer's production line layout and workpiece parameters.
2. Brand-name Core Accessories & Mature Technical Configuration
All key electrical and transmission components adoptinternational famous brands and domestic first-line brands:  PLC control system, SE components, servo motor, HIWIN linear guide, Taiwan reducer and precision gear rack. Adopts closed-loop servo control, full closed positioning compensation and anti-interference circuit design. Standard with automatic lubrication system and fault self-diagnosis system, ensuring ultra-low failure rate, stable repeated precision and long continuous service life.
3. Rich Domestic & Overseas High-standard Project Cases
With mature export engineering experience, we have successfully undertaken multiple European automation supporting projects, fully meeting EU CE standard, high precision and environmental protection technical requirements. Completed Australian factory heavy-duty truss manipulator turnkey project, adapting to high temperature, dust and harsh industrial working conditions. Long-term supporting cooperation with domestic large-scale automobile, precision machinery and stamping industry groups, with stable technical scheme and reliable after-sales landing capability.
4. Complete After-sales Guarantee
12-month full machine warranty and lifelong free technical support. Provide one-stop full service including customized scheme design, production, precision debugging, overseas remote installation and fault guidance, ensuring worry-free equipment operation.
Product Name Truss Manipulator / Gantry Robot Load Capacity 10kg - 5000kg (Customized)
Positioning Accuracy ±0.02mm ~ ±0.05mm Max Running Speed 60-100m/min
Axis Quantity 2 Axis / 3 Axis / Multi-axis Customized Structure Material Q345B High Strength Steel
Drive System Full Servo Motor Drive Transmission Type Precision Gear Rack Transmission
Control System PLC Intelligent Control Working Duty 24h Continuous Operation
Fixture Type Mechanical Gripper / Vacuum Sucker / Magnetic Clamp Application Machinery Processing, Stamping Line, Auto Industry, Workshop Automation
Features High Precision, High Speed, Heavy Load, Long Stroke, Intelligent Automatic Certification CE, ISO9001
Customization Full Non-standard Customization Support Warranty 12 Months
After-sales Service Online Technical Support, Overseas Guidance HS Code 84795090



Customization Functions



Load & Stroke Customization: Custom 10kg-5000kg load, arbitrary X/Y/Z axis stroke and lifting height.
Axis & Structure Customization: Optional 2-axis, 3-axis and multi-axis linkage, ground-mounted / top-mounted gantry structure.
Speed & Precision Customization: Adjustable running speed and positioning accuracy to match precision or high-speed production demands.
Fixture Customization: Custom mechanical gripper, vacuum sucker, magnetic fixture and special-shaped grabbing tool for different workpieces.
Intelligent Function Customization: Support automatic feeding, counting, sorting, fault alarm and remote monitoring.



Special Environment Customization: Custom dust-proof, anti-corrosion and high-low temperature resistant models for special workshop conditions.



> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`

> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`

> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`
Shandong Longhui Group was founded in 2005, and Mairuite (Shandong) Heavy Industrial Machinery Co., Ltd., our dedicated foreign trade subsidiary, was set up in 2021. Nestled in Yangliu Town, the hometown of lifting machinery at the foot of Mount Tai, we hold a registered capital of 318 million RMB and focus on R&D, manufacturing and installation of intelligent lifting and automatic handling equipment.
Our extensive product portfolio covers 30 series and nearly 6,000 specifications. The lineup includes overhead cranes, gantry cranes, container cranes, RTGs, portal cranes, European standard cranes, plus supporting grabs and container spreaders. We also supply intelligent automation equipment: palletizing & depalletizing robots, truss manipulators, customized multi-axis handling robots, AGVs, RGVs, rail & trackless electric flat cars, hydraulic ladle transfer vehicles and heavy-duty flatbed trailers, catering to full-scene industrial transport demands.
We have passed authoritative global and domestic certifications: ISO9001 quality management, ISO14001 environmental management, OHSAS18001 occupational health & safety, China CCC compulsory certification and EU CE certification, guaranteeing compliant and reliable products for worldwide clients.
Covering a 120,000 m2 production base, our team totals 560 staff, including 18 senior engineers, 106 intermediate engineers and 272 professional technicians. We run complete workshops for riveting, machining, heat treatment, electrical assembly and raw material processing, equipped with 328 sets of advanced production machines and over 300 calibrated testing instruments, qualifying us as a Grade-3 metrology certified enterprise. Our annual output reaches 23,000 tons of lifting equipment. Six regional offices and 28 after-sales service stations across China deliver timely on-site support for steel plants, power stations, factories, ports and logistics yards.
> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`
We run an independent Crane Machinery Research Institute with CAD design platforms and professional testing labs. Long-term technical cooperation links us with Beijing Crane Research Institute, Shandong University, Shandong University of Science and Technology and the Shandong Academy of Sciences Robot Institute. Our self-developed four-DOF palletizing robots and Cartesian coordinate automatic handling systems reach international top-tier standards, while optimized manufacturing processes cut costs and boost cost performance. Multiple utility model patents have been granted for our intelligent crane innovations.
Our products sell well across more than 30 domestic provinces and export to Russia, Australia, France, Brazil, Thailand, Indonesia, Poland, the Philippines, Israel and numerous African countries, winning consistent recognition from global buyers. General Manager Xu Jin warmly invites all domestic and overseas partners to visit our factory and negotiate long-term cooperation.
> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`
> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`
> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`
> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`
> `Heavy‑load 500‑1000kg gantry truss robot, high rigidity for factory automated material transport & heavy workpiece handling. One‑stop customized industrial robot solutions.`
1. Original Manufacturer, One-stop Customized Non-standard Equipment
2. Full-range product supply for cranes, transfer carts & automation manipulators
3. Strict production testing, reliable heavy-duty performance & low failure rate
4. Professional export packaging & global sea-land logistics delivery solution
5. Complete pre-sales scheme design & worldwide after-sales service support

FAQ
1. Are you a real manufacturer? What is your company scale?
We are a professional heavy industry manufacturer. We own a 120,000 m2 modern production plant with registered capital of 318 million RMB. Integrated R&D, design, production & sales. Standard models in stock, customized non-standard equipment available. Customers are warmly welcomed to visit our factory.

2. Can I customize the equipment according to my working site?
Yes. Overhead & gantry cranes, truss manipulators, electric transfer carts can be customized based on load capacity, span, stroke, power supply and site conditions. We provide professional customized layout solutions.

3. What is your production lead time?
Standard models: 7–15 working days. Large & non-standard automatic turnkey projects: 20–45 working days. We regularly update production photos for your reference.

4. How do you pack and ship the equipment?
Electrical components use vacuum moisture-proof packaging. Steel structures are reinforced with anti-rust protection. Fumigation-free wooden cases are optional. For oversize cargo, we arrange flat rack & open-top container sea freight solutions.

5. What's your warranty policy and after-sales service?
12 months warranty for the whole machine (wearing parts excluded). Free replacement parts for quality failures within warranty. We provide remote video technical support for overseas customers

6. Can you arrange engineers for site survey?
On-site survey service available for domestic projects. For overseas buyers, simply send site dimensions and photos, we will complete drawings and technical solutions

.
