Double Girder Overhead Crane for industrial site handling compact safe customized
| Place of Origin | China |
|---|---|
| Brand Name | MRT |
| Certification | CE |
| Model Number | QD-16 |
| Minimum Order Quantity | 1 |
| Price | USD 6500-7960/Set |
| Packaging Details | Large-sized double-layer PVC film packaging, small-sized non-sterilization wooden box packaging |
| Delivery Time | 25-50 Woiking Days |
| Payment Terms | L/C, T/T, D/P |
| Supply Ability | 20Sets/Month |
Product Details
| Working Duty Class | A3‑A7 Optional | Hoist Type | Wire Rope Electric Winch |
|---|---|---|---|
| Control Mode Combination | Pendant + Wireless Remote Dual Control | Travel Buffer | Rubber Buffer Installed At Both Ends |
| Main Power Supply Form | Closed Bus Bar Power Supply | Anti‑dust Treatment | Motor Dust‑proof Protection |
| Hook Safety Latch | Spring‑loaded Safety Latch Fitted | PLC Monitoring System | Real‑time Operation Data Monitoring |
| Transport Split Design | Main Girder Separable For Shipment | Allowable Working Humidity | ≤85% Non‑condensing |
| Brake Type | Electromagnetic Disc Brake | Rail Sweeper | Track Cleaning Device Equipped |
| Third‑party Inspection | Accept Customer Designated Inspection | Overseas After‑sales | Overseas Engineer Dispatch Available |
| Surface Priming Coat | Anti‑rust Epoxy Primer |
You can tick the products you need and communicate with us in the message board.
| SKU_ID | Product_Name_EN | Load_Capacity | Power_Supply | Running_Mode | Running_Speed | Main_Material | Certification | MOQ | Price_USD | Lead_Time | Warranty | Application_Scenario | Customization_Support | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC-10T-TR-001 | 10 Ton Double Girder Overhead Bridge Crane | 10 Ton | Lead-acid Battery | Trackless | 0-25 m/min (Adjustable) | Q235 Carbon Steel | CE, ISO9001 | 1 Set | $6500.00 | 15 Working Days | 2 Years | Machinery manufacturing workshops | Yes | |
| TC-20T-TR-002 | 20 Ton Double Girder Overhead Crane | 20 Ton | Lead-acid Battery | Trackless | 0-25 m/min (Adjustable) | Q355 High Strength Steel | CE, ISO9001 | 1 Set | $6910.00 | 20 Working Days | 2 Years | Steel structure factories and metallurgy workshops | Yes | |
| TC-30T-TR-003 | 30 Ton Double Girder Overhead Bridge Crane | 30 Ton | Lithium Battery | Trackless | 0-25 m/min (Adjustable) | Q235 Carbon Steel | CE, ISO9001 | 1 Set | $7340.00 | 12 Working Days | 2 Years | Foundry and mold processing plants | Yes | |
| TC-40T-TR-004 | 40 Ton Double Girder Travelling Bridge Crane | 40 Ton | Lithium Battery | Trackless | 0-25 m/min (Adjustable) | Q355 High Strength Steel | CE, ISO9001 | 1 Set | $7960.00 | 25 Working Days | 2 Years | Equipment assembly production lines | Yes |
Product Description

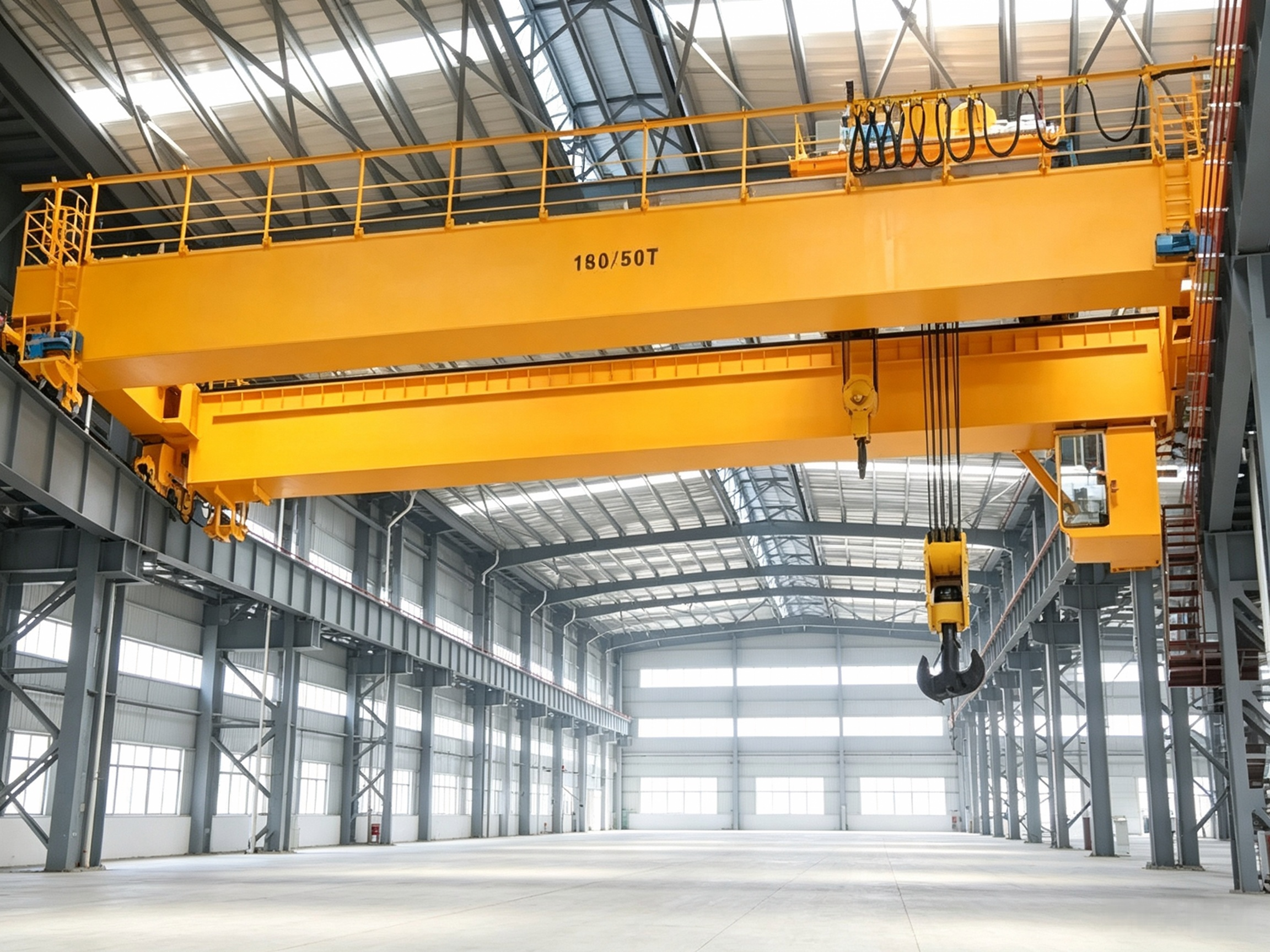

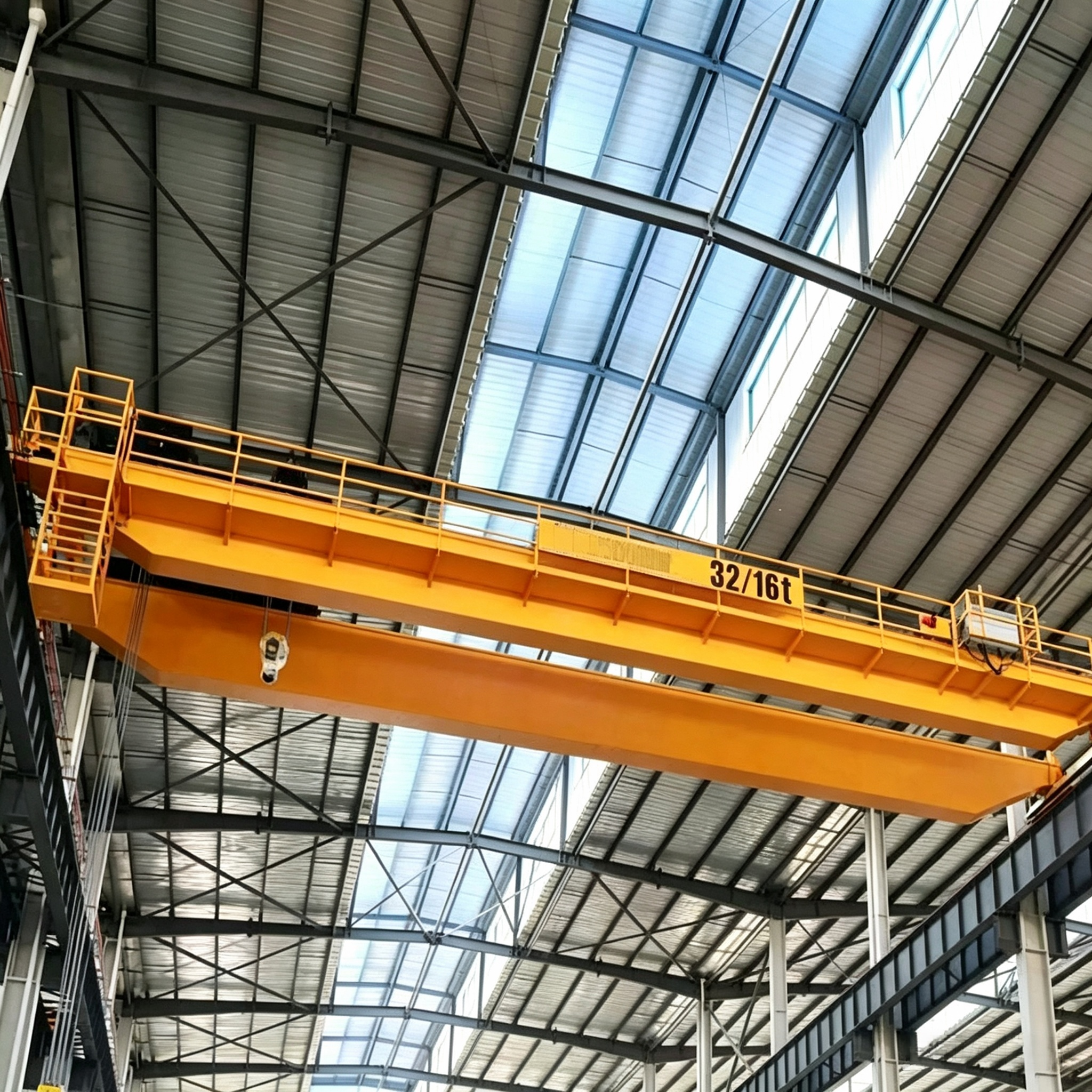

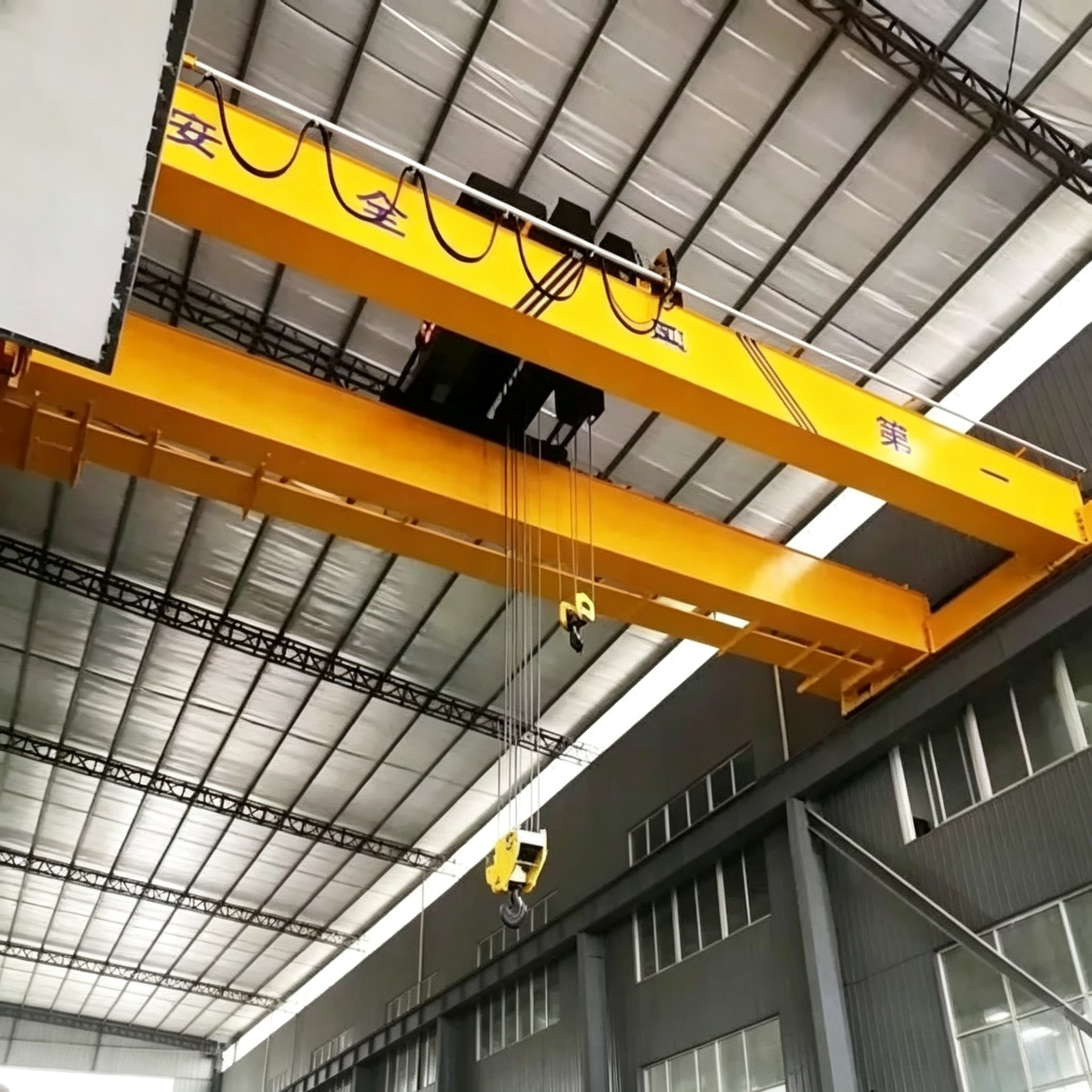

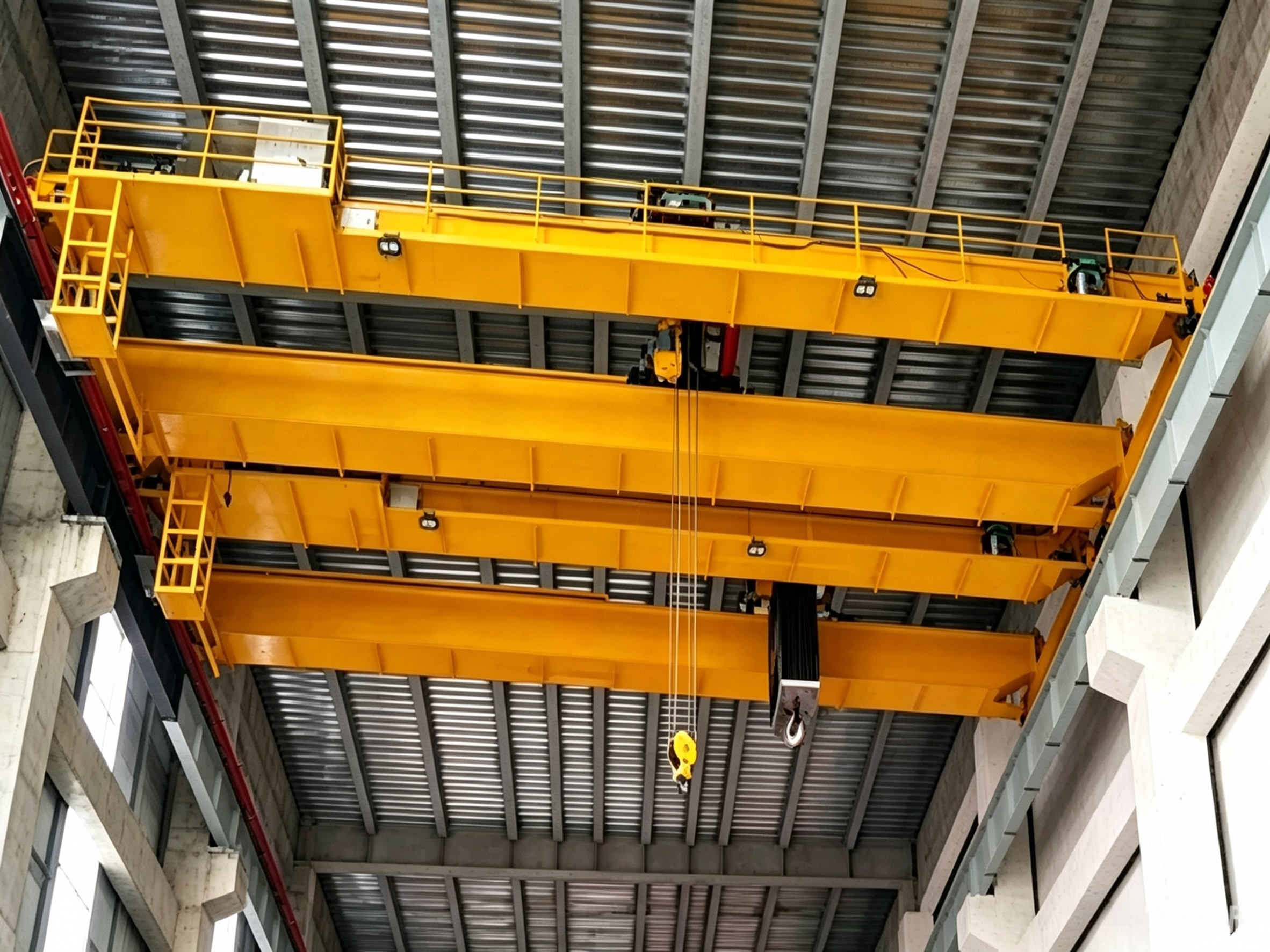

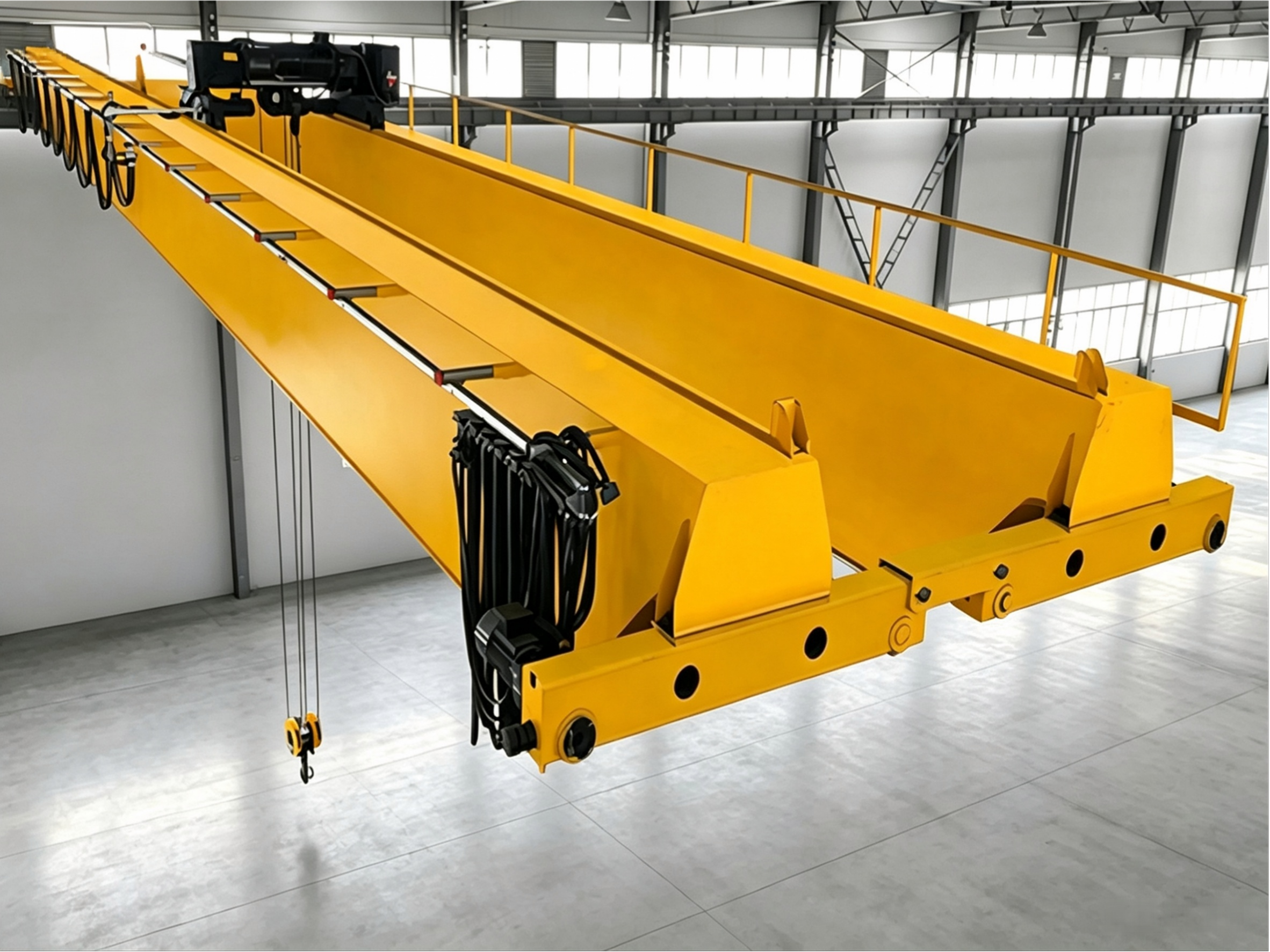

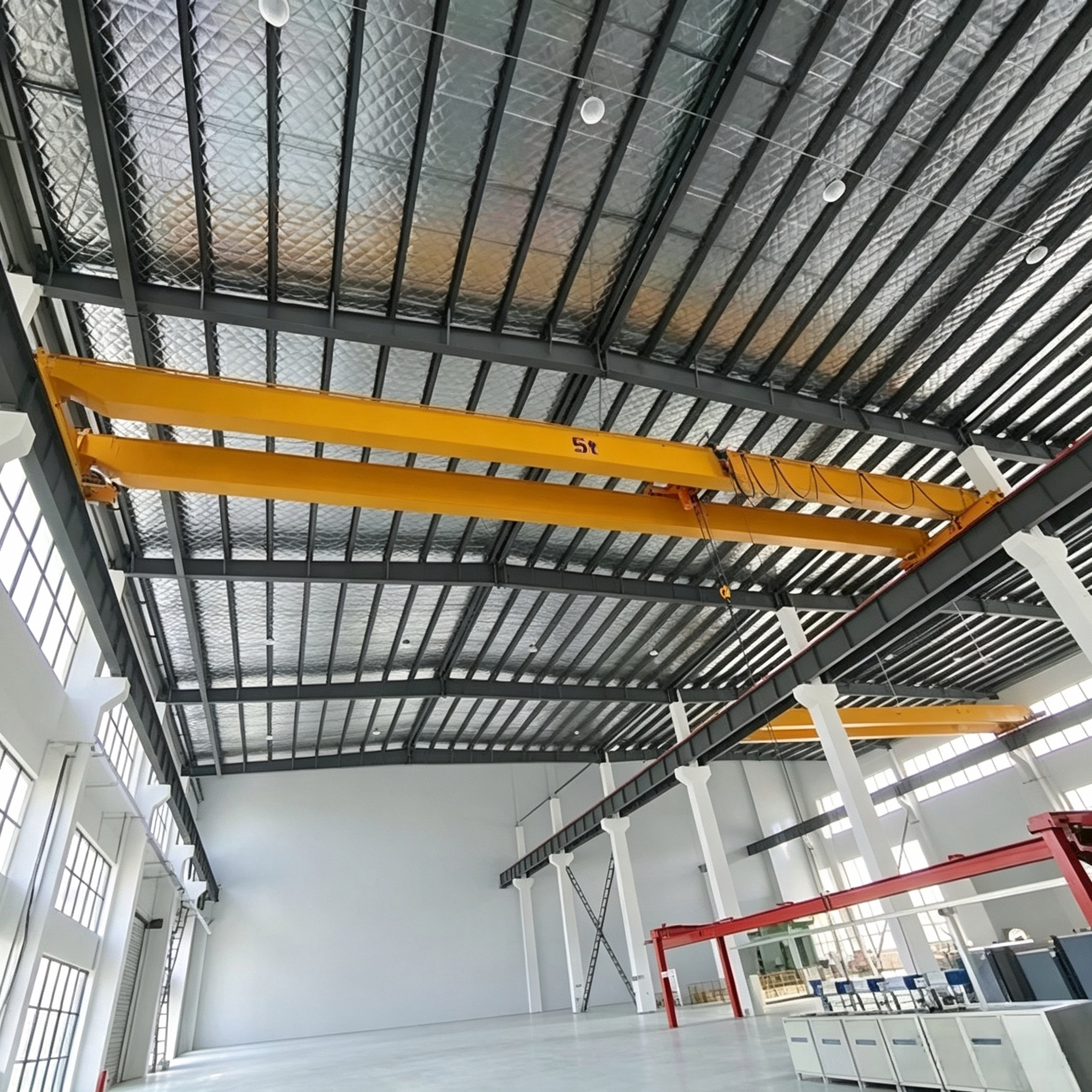

two beam overhead crane
Double girder overhead crane is heavy‑duty indoor lifting equipment composed of main beams, end carriages, trolley and electric control system.
Built with Q355B high‑strength steel, it delivers stable and low‑noise operation with complete safety protections. Multiple operation modes are available. Widely applied for heavy load handling in factories, steel plants and foundries. Span, lifting height and working duty can be customized
product superiority
- High load‑bearing capacity with excellent structural rigidity
- Stable running, low vibration and accurate load positioning
- Complete safety protection devices for secure operation
- Multiple operation modes available
- Suitable for heavy‑duty continuous working conditions
- Easy maintenance and long service life
- Customizable span, lifting height and working class
main technical parameters
| Item | Parameter |
|---|---|
| Rated Lifting Capacity | 5‑500t, Customizable |
| Span | 7.5‑34.5m |
| Lifting Height | 6‑36m |
| Working Class | A5‑A8 |
| Main Hoist Speed | 2.5‑13m/min |
| Aux Hoist Speed | 5‑16m/min |
| Trolley Travel Speed | 18‑40m/min, VFD optional |
| Crane Travel Speed | 25‑85m/min, VFD optional |
| Power Supply | 3‑Phase AC 380V 50Hz |
| Control Mode | Pendant / Radio Remote / Operator Cabin |
| Main Beam Material | Q355B High‑tensile Carbon Steel |
| Working Temperature | ‑20℃ ~ +45℃ |
| Certification | CE, ISO 9001 |
application scenarios
- Machinery manufacturing & equipment assembly workshops
- Steel mills and metallurgical processing plants
- Foundry workshops for casting and forging operations
- Heavy‑duty machinery maintenance workshops
- Heavy goods storage and handling warehouses
- Precast concrete component production plants
- Steel structure fabrication workshops
- Power plant and mine auxiliary processing workshops
Why choose us?
- Professional manufacturer, all equipment can be customized according to your working conditions
- Strict quality inspection before delivery, support CE certification
- Long warranty period and overseas technical guidance service
- Flexible trade terms: EXW, FOB, CIF, DDP available
- Support OEM & ODM solution design
Contact us and send your requirements of load, size and working environment, we will provide the most suitable transportation solution and formal quotation for you.
