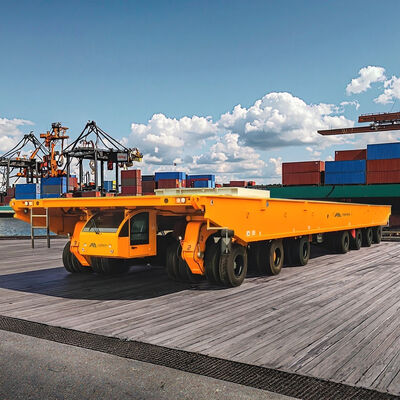

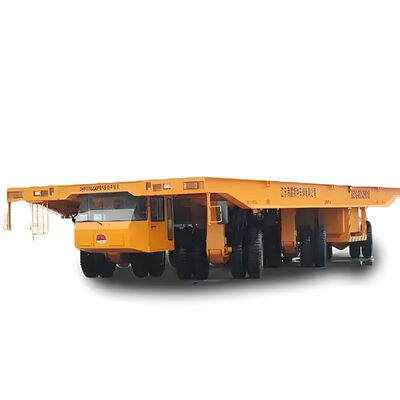

High precision moving heavy load Self-propelled Modular Transporter for petrochemical skid transport
| Place of Origin | shandong ,china |
|---|---|
| Brand Name | MRT |
| Certification | CE ISO |
| Model Number | SPMT |
| Minimum Order Quantity | 1 |
| Price | US $30,000 - 90,000 / Set |
| Packaging Details | Bare machine, key spare parts packed in wooden case. Loaded by 40ft HQ container or bulk vessel. |
| Delivery Time | 60-90 work days |
| Payment Terms | D/A, D/P, D/A, T/T |
| Supply Ability | 3 Sets per Month |
Product Details
| Rated Load Capacity | 180 Ton-1000 Ton | Axle Line Quantity | 6 Axle Lines/Custom Axle Lines |
|---|---|---|---|
| Model No. | SPMT Customized | Load Per Axle Line | 30 Ton/axle Or Customized |
| Platform Total Length | Customized Mm | Platform Width | 2430 Mm Customizable |
| Hydraulic Lifting Stroke | 300~350 Mm | Tire Specification | 12.00R20 Customizable |
| Driving Mode | Full Hydraulic Drive | Power Pack Engine | Diesel Power Unit Custom Engine |
| Control System | Wire + Wireless Remote Control | Minimum Turning Radius | Customized |
| Hydraulic Suspension Type | Independent Hydraulic Suspension | Certification | CE / ISO9001 |
| Module Combination Expandable | Yes, Series Or Side-by-side Combination |
You can tick the products you need and communicate with us in the message board.
| SKU | MODEL | SWL | Axle | Size | Tire | NOTE | |
|---|---|---|---|---|---|---|---|
| SPMT-04A | 4 Axle SPMT Self Propelled Modular Transporter | 145 Ton | 4 Axle | 8200*2400 mm | 11.00R20 | Bridge precast beam transport | |
| SPMT-06A | 6 Axle SPMT Self Propelled Modular Transporter | 180 Ton | 6 Axle | 10500*2430 mm | 12.00R20 | Heavy cargo shipyard transport | |
| SPMT-08A | 8 Axle SPMT Self Propelled Modular Transporter | 235 Ton | 8 Axle | 12800*2430 mm | 12.00R20 | Large pressure vessel transport | |
| SPMT-10A | 10 Axle SPMT Self Propelled Modular Transporter | 335 Ton | 10 Axle | 15000*2430 mm | 12.00R20 | Oversized industrial equipment | |
| SPMT-CUS | Custom Axle SPMT Self Propelled Modular Transporter | Custom Ton | Custom Axle | Custom Size | Custom Tire | Customized for special project |
Product Description
Our self-propelled modular transporter (SPMT) is heavy-duty hydraulic modular transport machinery built for oversize and overweight cargo transportation. It adopts full hydraulic driving system and independent hydraulic suspension, which guarantees uniform load sharing across all axle lines. Multiple modules can be combined in tandem or side-by-side to achieve different carrying capacities. Multi-way steering supports crab walk, transverse shift and on-site rotation, adapting to narrow and complex working sites.
Key Features
- ✅ Independent Hydraulic Suspension:Automatically balance load distribution on each axle line to protect cargo and chassis
- ✅ Multi-direction Steering System:Crab walk, transverse movement, rotation and normal forward/reverse travel
- ✅ Flexible Module Combination:Modules can be connected in series or parallel to expand loading tonnage freely
- ✅ Dual Control Mode:Wired + wireless remote control for safe and convenient field operation
- ✅ Customizable Design:Axle quantity, platform size, load capacity can be customized for special projects
- ✅ Stable Diesel Power Unit:Reliable power pack with optional famous brand engine for long time continuous working
- ✅Customizable axle lines, platform dimensions and load capacity for special projects
- ✅Optional famous brand diesel power unit for stable continuous operation
- ✅CE and ISO9001 certification, strict factory inspection before shipment
【Application】
Application Scenarios
Our SPMT modular transporter is ideal for transporting heavy oversized goods:

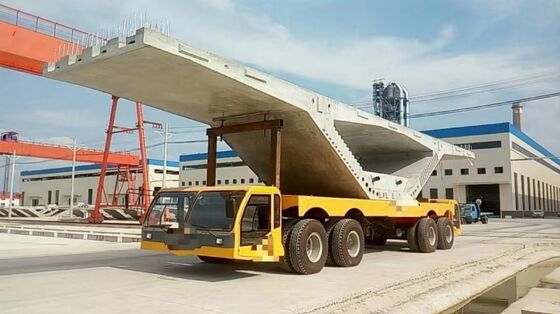

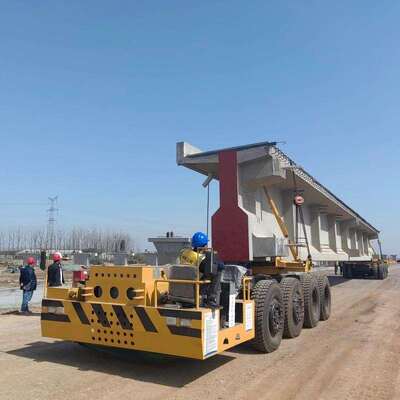

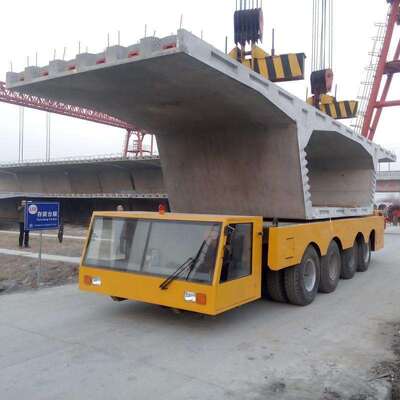

- Bridge precast girder & beam transportation
- Shipyard hull and large marine component handling
- Pressure vessel, reactor and petrochemical equipment transport
- Large generator, heavy machine tool and industrial equipment relocation
- Other heavy cargo logistics and turnkey transport projects
【Technical & Service】
Technical Support & After-sales Service
We provide full technical drawings, operation manual, on-site installation guidance and global after-sales service. Spare parts supply is available for long-term maintenance. Each unit will be strictly inspected before delivery. Customized solution is welcome according to your site condition and cargo weight.
| Parameter Category | Basic Model (60 Ton) | Customized Model (Adjustable on Demand) |
| Rated Load Capacity | 60 Ton | 100 Ton - 20,00 Ton |
| Number of Axles | 3 Axles (Spliceable) | 5 - 1,00 Axles |
| Tire Configuration | 8 Tires per Axle (820mm Diameter) | 8 - 12 Tires per Axle (Selectable on Demand) |
| Minimum Turning Radius | Inner: 3.14m / Outer: 8.4m | Inner: 2.8 - 5m |
| Travel Speed | 5km/h (Unloaded), 2km/h (Loaded) | 3 - 8km/h (Unloaded) |
| Positioning Accuracy | ±1mm | ±0.5 - 1mm |
| Power Type | Diesel Hydraulic Drive | Diesel / Electric Hydraulic Drive |
| Steering mode | Straight line, diagonal line, horizontal line, center rotation, eight-shaped turn, etc. | |
Contact us now to get your customized SPMT proposal and quotation. Please tell us your cargo weight, dimension and working site condition, our engineering team will design the most suitable transport solution for you.
